An integer representation for periodic tilings of the plane by regular polygons

José Ezequiel Soto Sanchez¹, Tim Weyrich², Asla Medeiros e Sá³, Luiz Henrique de Figueiredo¹

¹ IMPA, Rio de Janeiro, Brazil
² University College London
³ FGV EMAp, Rio de Janeiro, Brazil

Abstract

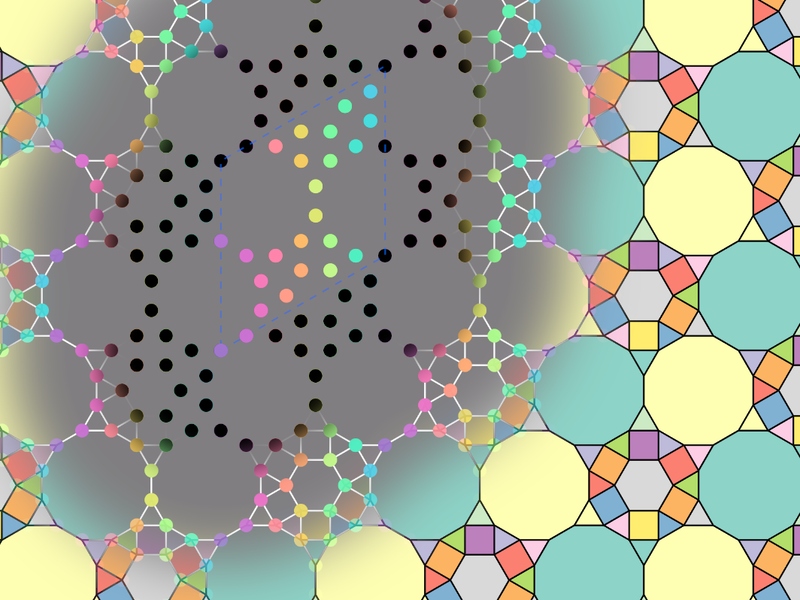

We describe a representation for periodic tilings of the plane by regular polygons. Our approach is to represent explicitly a small subset of seed vertices from which we systematically generate all elements of the tiling by translations. We represent a tiling concretely by a (2 + n) × 4 integer matrix containing lattice coordinates for two translation vectors and n seed vertices. We discuss several properties of this representation and describe how to exploit the representation elegantly and efficiently for reconstruction, rendering, and automatic crystallographic classification by symmetry detection.
